XL6009 Buck Boost Converter





Introduction

Hey there in this session we will discuss how the buck boost converter works, here I am using XL6009 module and upgrade to buck boost converter.

Components

Modified Inductor

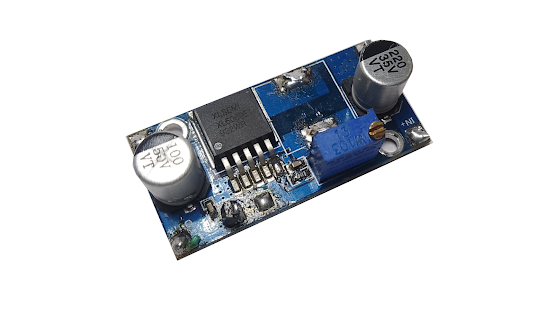

XL6009 Boost Converter Module

Upgrading XL6009 Module

First we need toroid inductor from old SMPS filter, now make 25 turns of 0.7mm copper wire with two wires hence we got two coils of same turns as shown in figure.


Make Dual Coil inductor of 25 turns each


After this we have to remove the old inductor from xl6009 module and then we got two PCB points at which we will connect our modified inductor.
Remove the old Inductor from XL6009 module


Now connect the wire of both coils of inductor as shown in figure, the first coil wires connect between +VCC input and other to SW i.e. switch pin of XL6009 IC. And other coil wire will connect between input -Ve(GND) and diode pin.

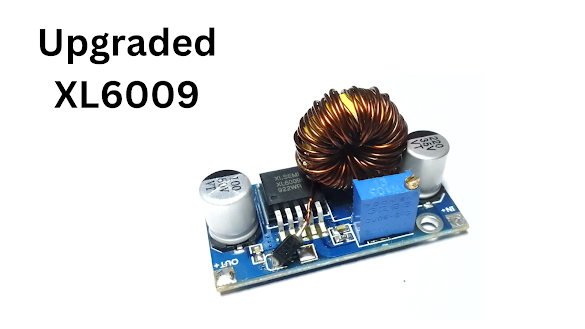

After connecting the inductor to XL6009 module it looks like in figure.



Circuit Diagram
